Thank you for all the help!
I have yet another issue.

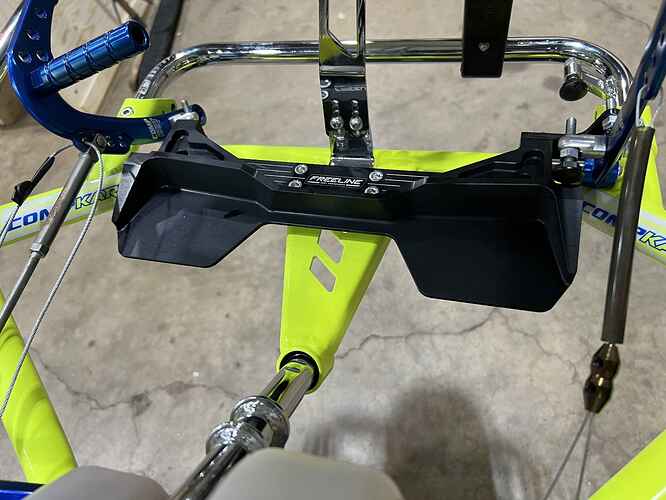

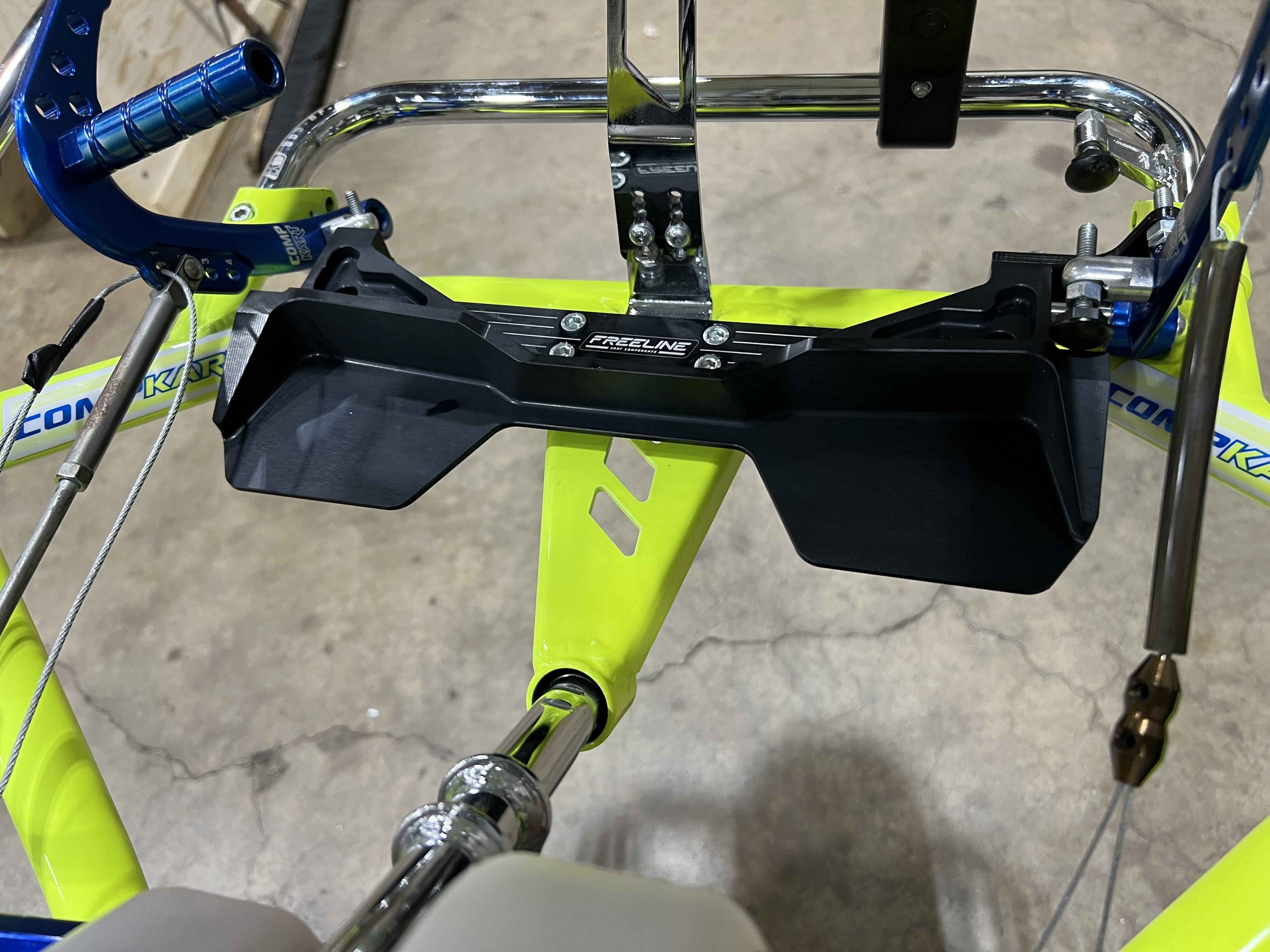

Trying to install the Freeline Hi-Tech pedal box on the CompKart Ranger chassis.
First.

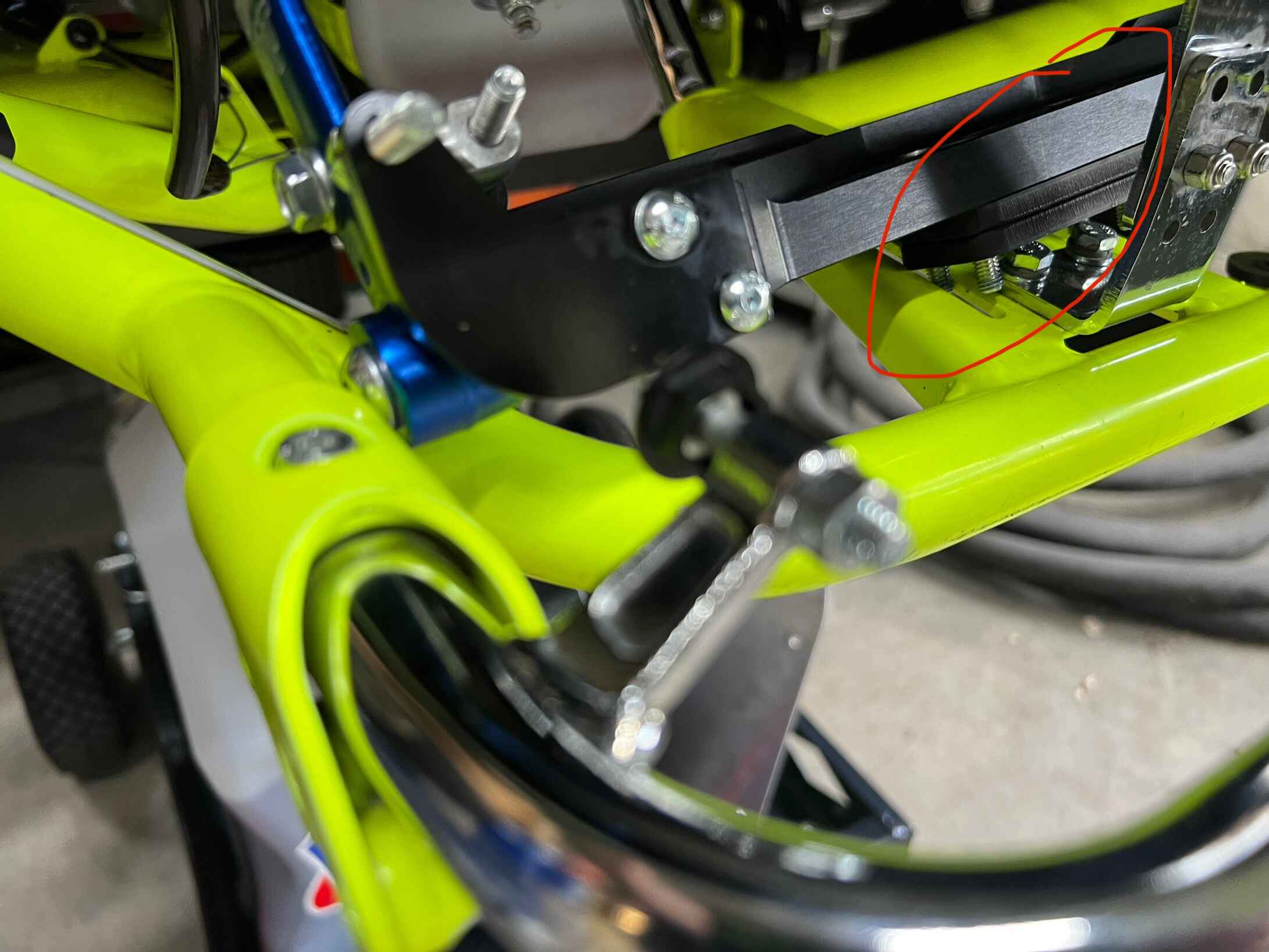

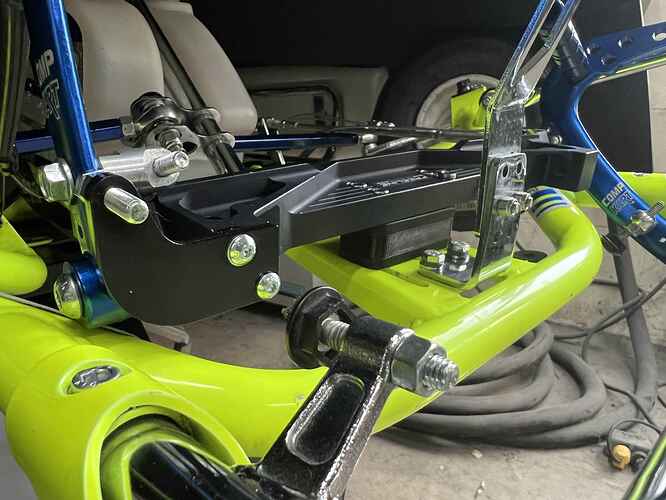

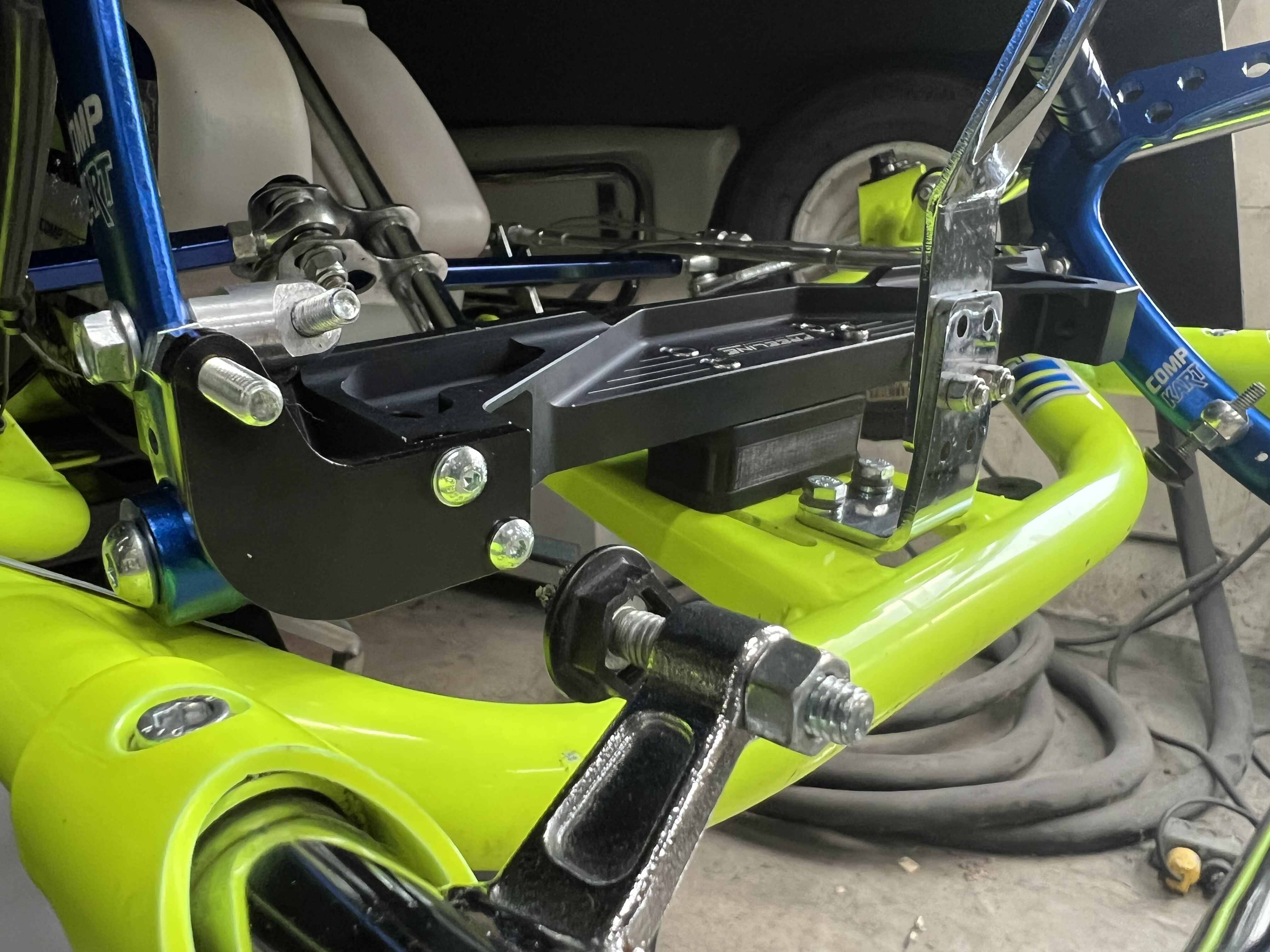

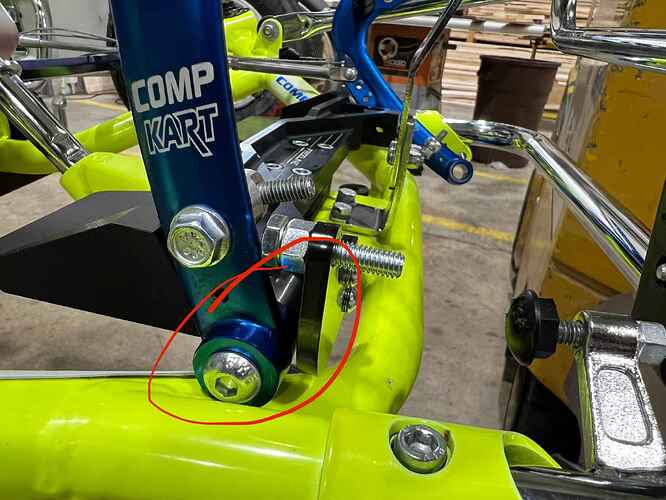

When mounted the box in the slotted holes the box was sitting too low with the two provided spacers. The HiTech pedals and screws were rubbing on the frame.
I 3D printed an extra 12mm spacer.

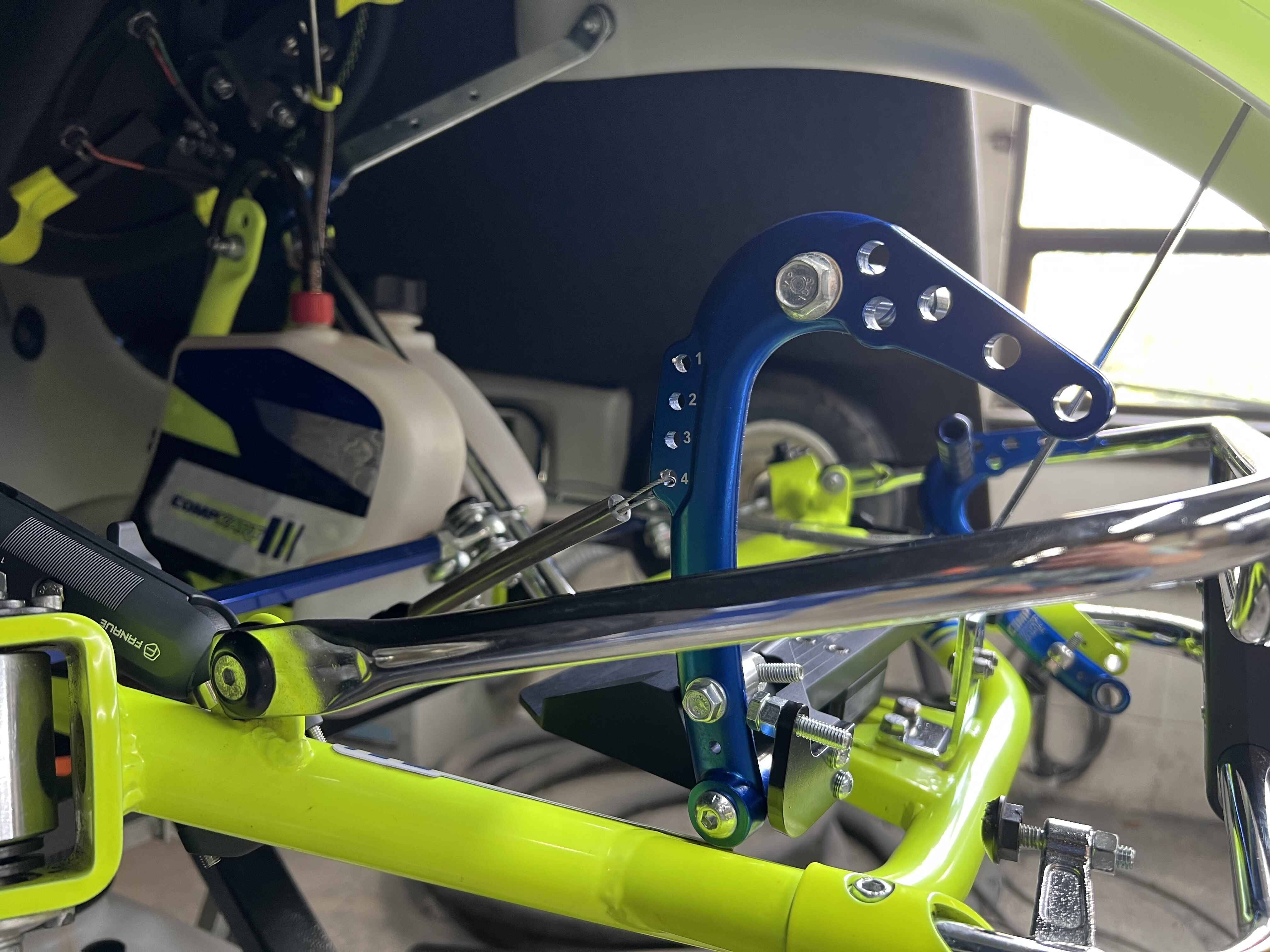

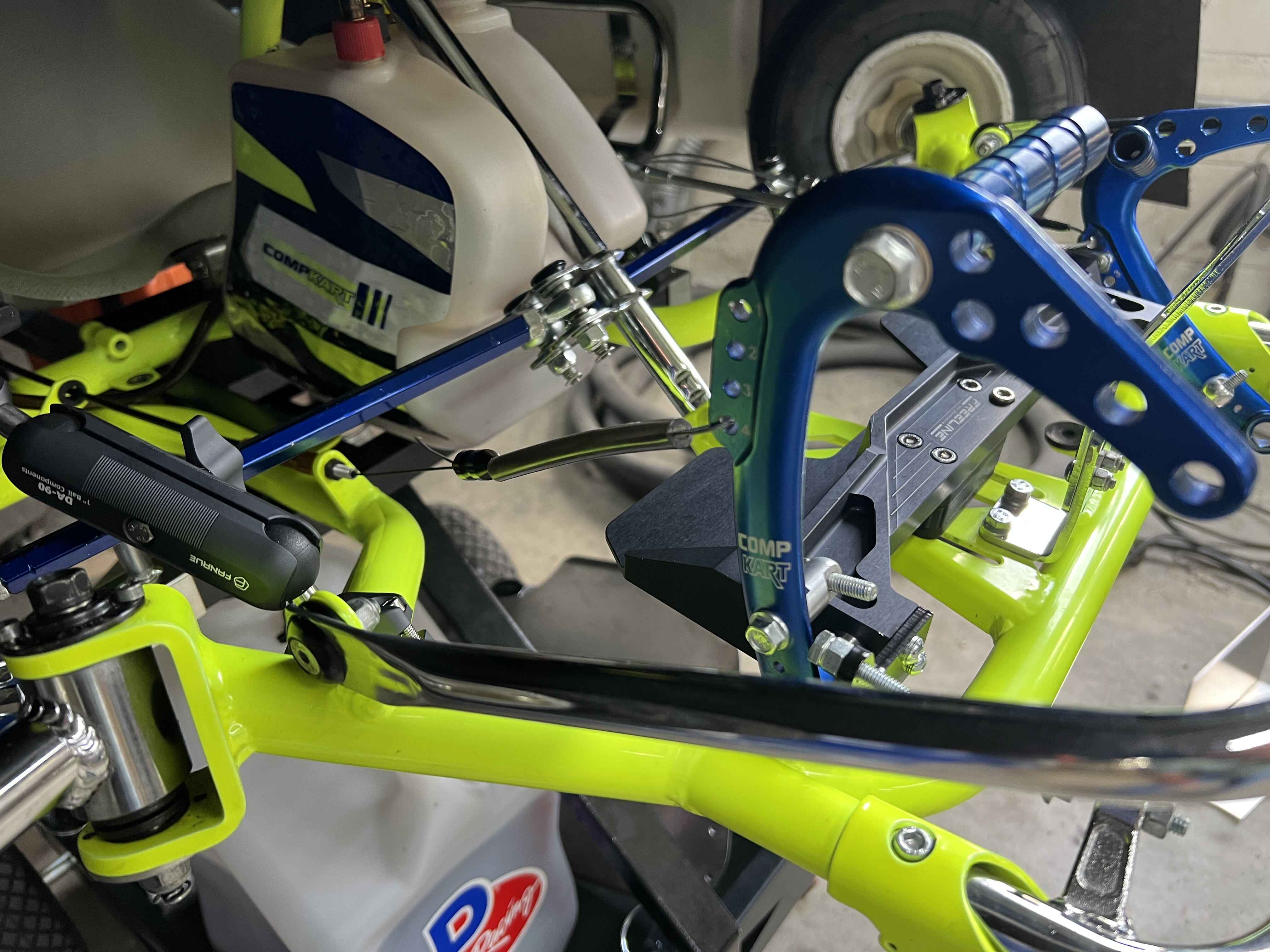

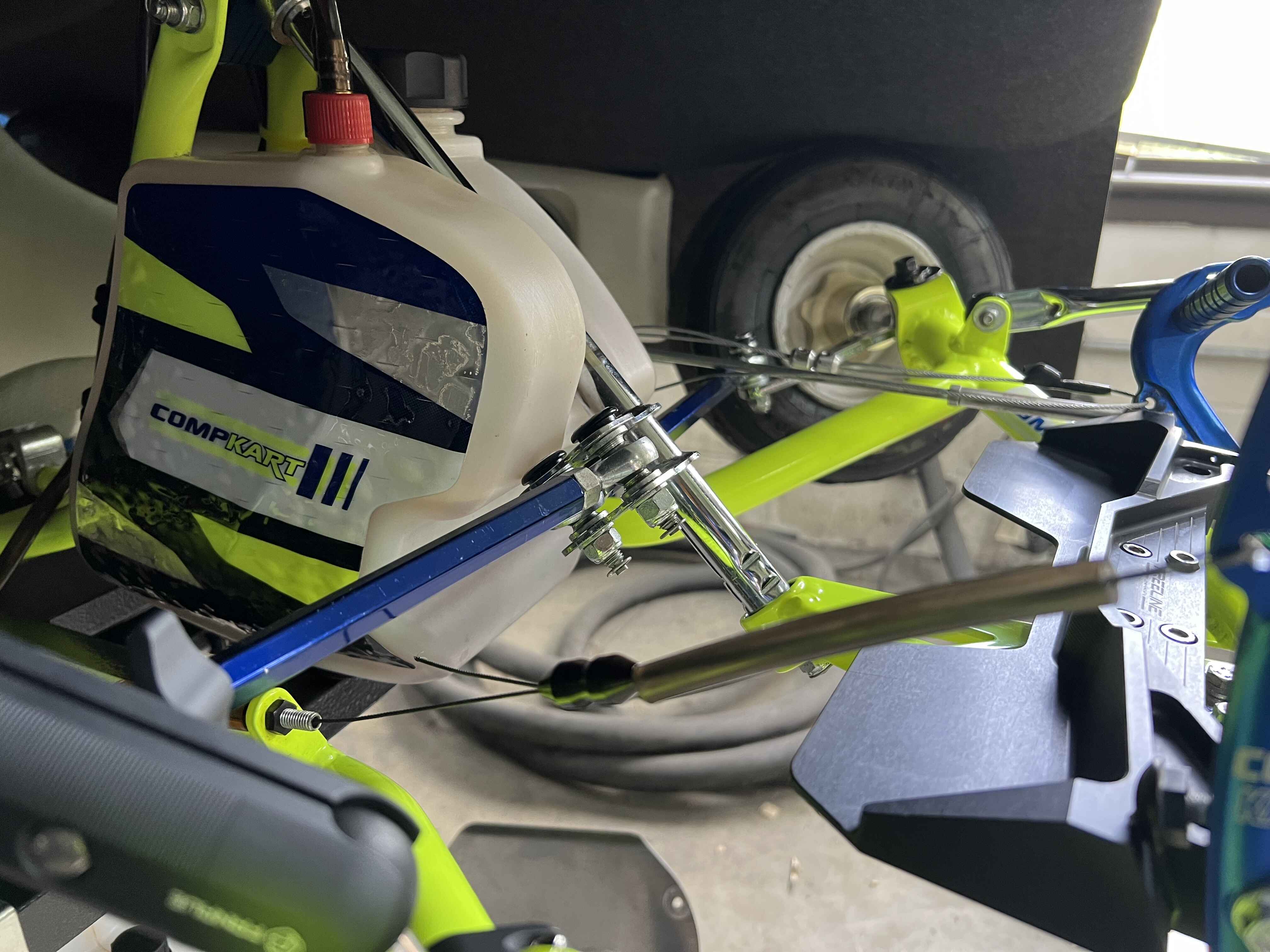

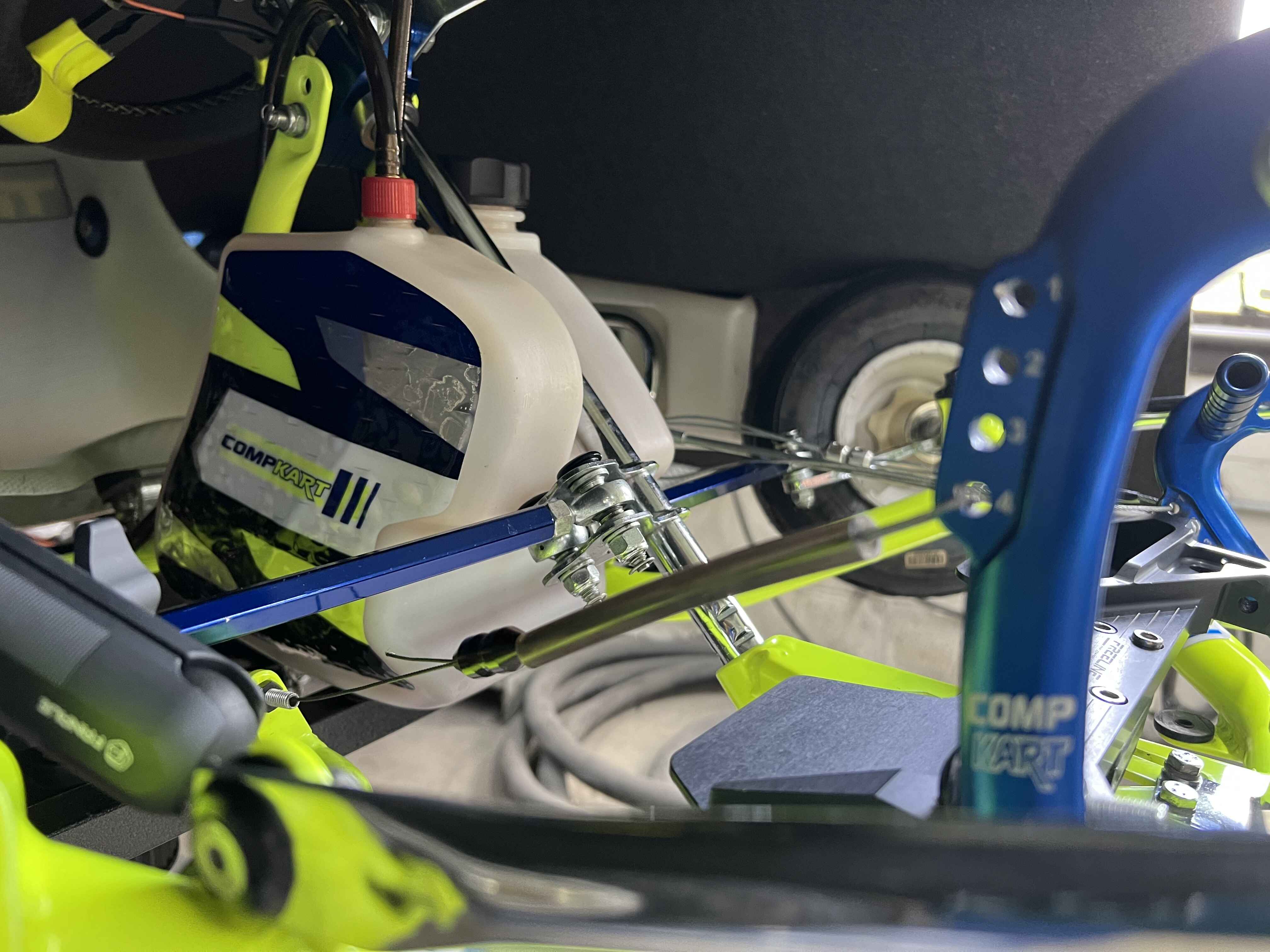

The pedals clear the chassis now. But the throttle cable comes out on such a big angle that I’m afraid it will rub and snap over time.
I did not check the brake pedal yet.
Also I’m not even sure the box does much as it just elevated the feet not brought them much closer.
Drill some new holes in the pedal box so you can mount it further back towards the steering column. You’ll then likely need to make a bracket for the throttle cable so the cable goes above the track rods with the adjuster at a better angle.
Sorry. No luck. If you’re not getting a solution here you can send some pictures via email to the Compkart guys. They are usually pretty quick on helping.
Hey!

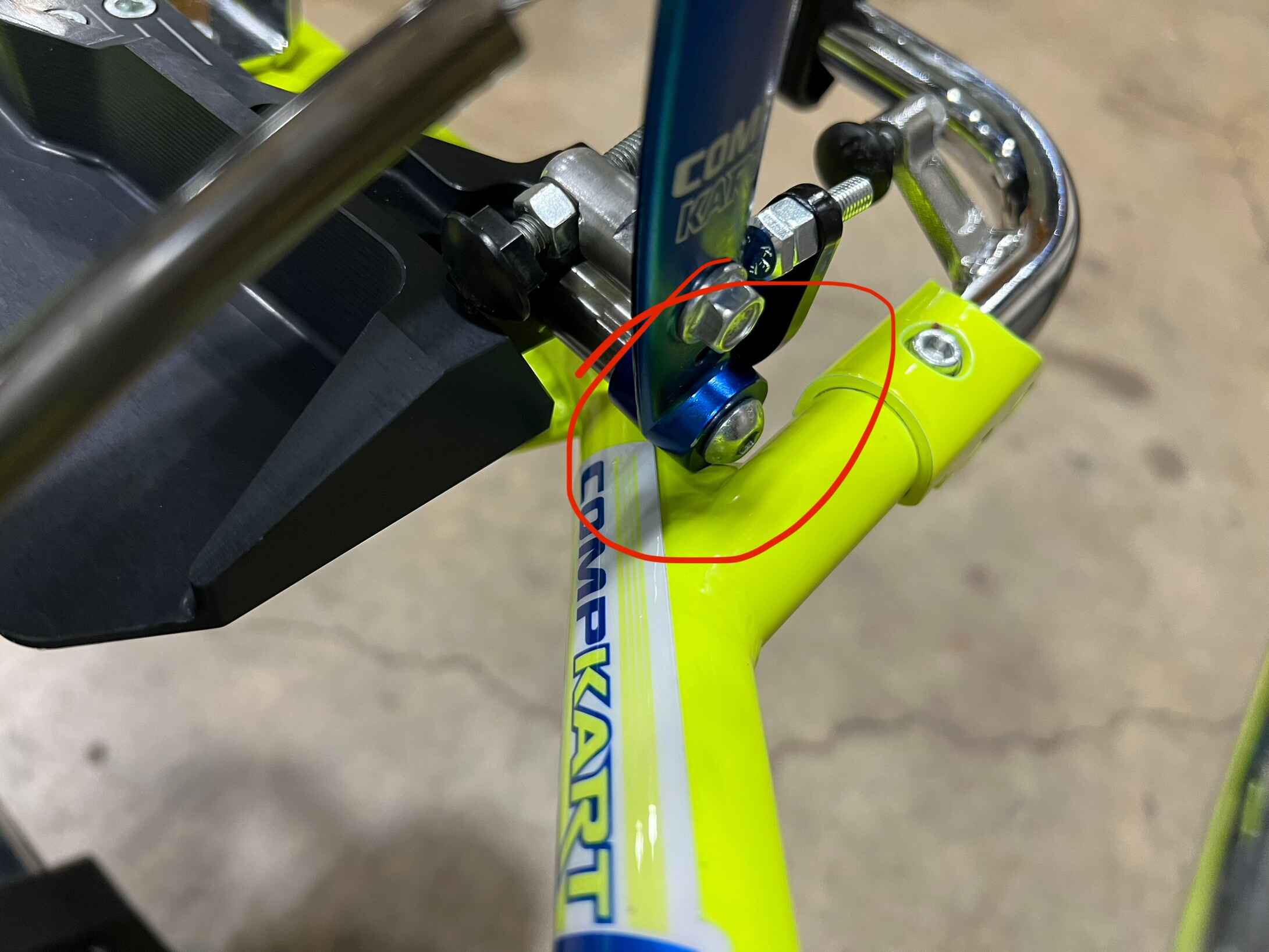

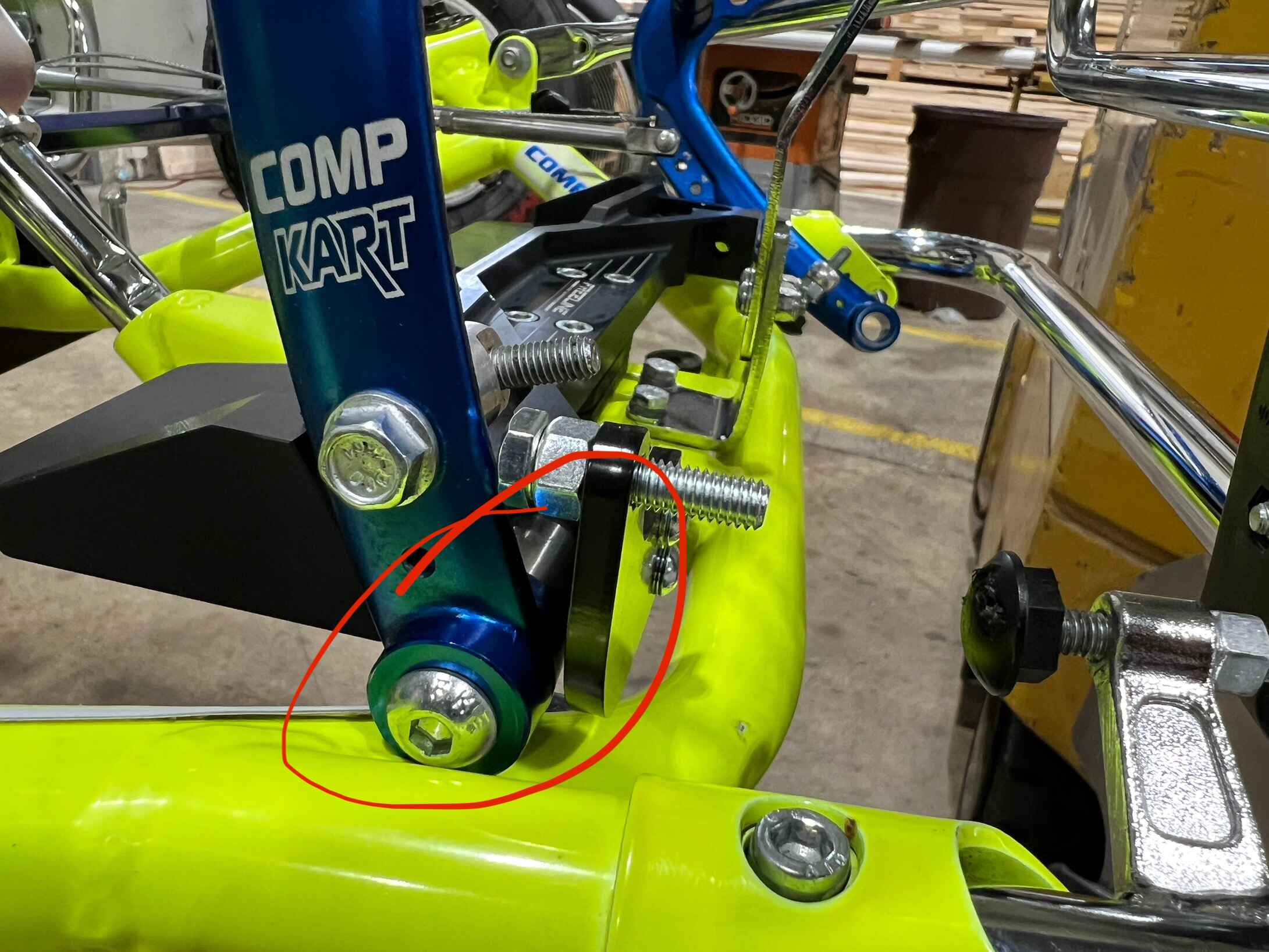

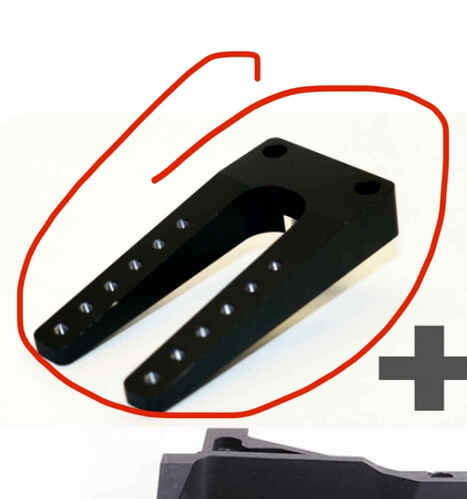

I did. I reached out to them. There is a bracket that goes with the Freeline pedal box that mounts on the Ranger chassis. The BirelArt C28 has a different steering column stay.
It looks like this is the only way to properly mount the box.
