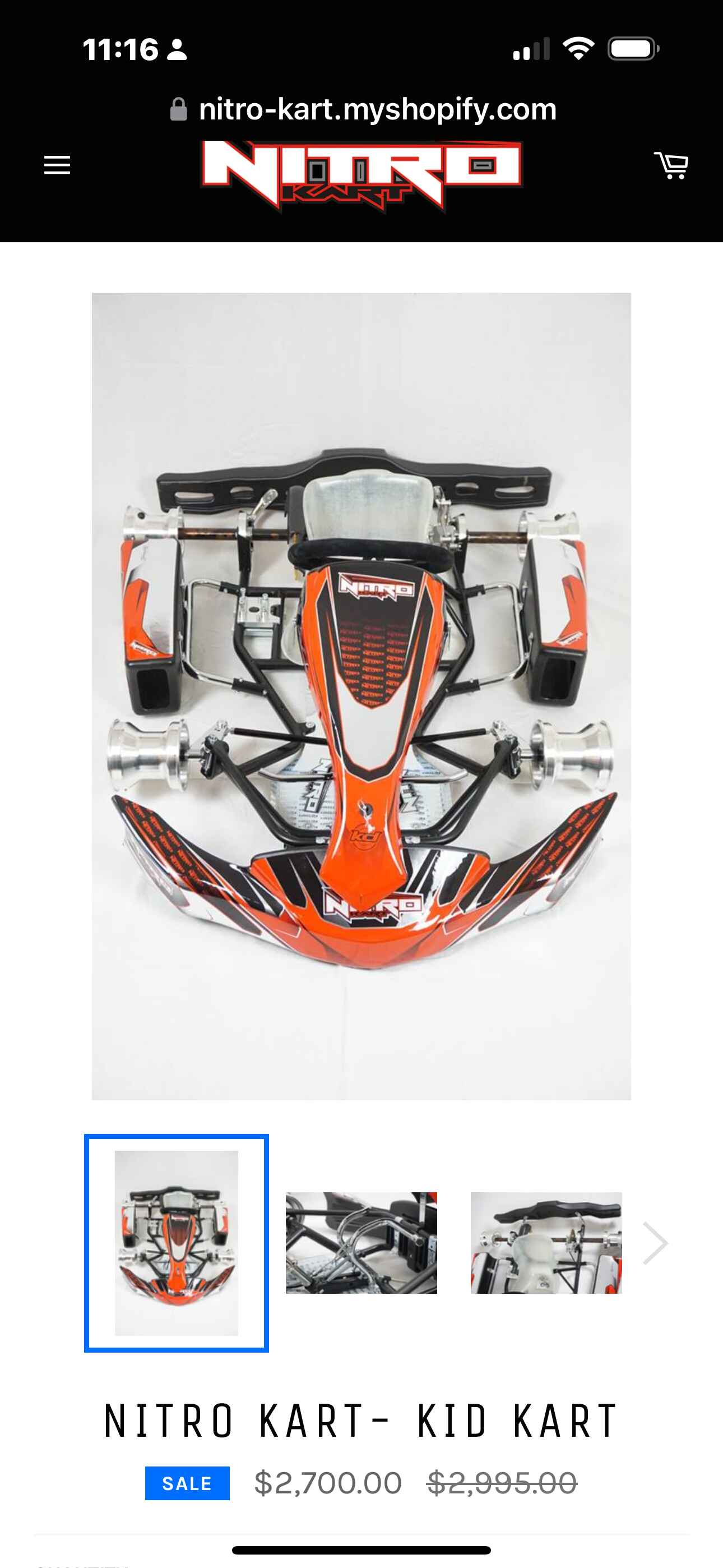

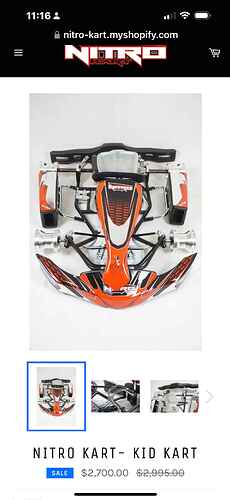

Hello, I have a new Nitro Kart Kid Kart Chassis that needs to be fitted with an LO206. I’m having trouble finding info on the specific parts I need and how its setup. The manufacture says its done but they don’t carry the parts to do it. Just not much information on this. I was hoping to find information about the clutch configuration if its different, tank, sprocket, chain, and mount. I may have left something out. Thanks.
I can help a little. Ultimately, I’m not as familiar with the nitro as other KKs.
For our top karts you needed:
Kk206 engine package (it comes with clutch).
57 tooth rear gear
#35 chain
Motor mount (we use PMI’s thick plate for maximum offset).
Fuel tank
Fuel line
Fuel filter
Here is the tank we use. If your kiddo has long legs, put it under steering shaft. If it interferes with their legs, put it mounted on sidepod (takes additional pieces).
Here is the mount:
2 Likes
Check the rules where you’ll be running to see if they require a certain gear ratio or clutch. Our local club races require specific ones. You’ll also want to check weight and you might have to add lead, but that’s not required for practice laps.
1 Like
This is under class structure.
401.1 Kid Kart:
Driver attained age: 5 – 7 years old
Minimum Weight: 150 lbs. Comer & IAME Bambino/185
Lbs. Briggs
Engine(s): Comer C-51, Briggs & Stratton LO206 &
IAME Bambino
Comer engine to be used Box Stock as supplied.
Briggs engine must conform to Briggs and Stratton
United States rule set.
IAME Bambino rules in Section 501
Briggs Exhaust: RLV 4110 pipe and Briggs 557045
Header Only
Briggs coil: Black coil (4100 RPM)
Briggs slide: Black slide (0.310")
Gear Ratios: Comer 10/89, Briggs 17/57 Mandatory
Tires: Slicks MG “SH” Red CIKF/Z Option 4.60 Fronts &
4.60 Rears
Rains MG “WT” or “SW” 4.20 Fronts & 4.20 Rears
Tires: Slicks MG “SH” Red CIKF/Z Option 4.60 Fronts &
4.60 Rears
Rains MG “WT” or “SW” 4.20 Fronts & 4.20 Rears
*Competitors must record the four slick and four rain tires
they wish to use for the entire day (Single or Double Final
race days) on the Pre-Tech sheet to be turned into Tech
BEFORE Qualifying.
*SFI 20.1 or other USPKS approved Chest Protectors are
MANDATORY for all drivers under 13 years old
(Section 102.3).
*May use either Cadet or Standard chassis. Must run
Cadet Bodywork including the Cadet nose on Cadet
chassis.
*See Section 502 and Briggs Website for additional
Engine Rules.
*Maximum rear tire circumference is 33"
401.3 IAME Micro Swift:
Age: 7 – 10 years old
Minimum Weight: 225 lbs.
Engine: IAME Swift 60cc TAG Engine
Carburetor: Tillotson HW-31A
Exhaust: IAME OEM Swift 16mm (No-Go) Restricted
Header & Pipe
Tires: Slicks MG “SH” Red CIKF/Z Option 4.60 Fronts &
4.60 Rears
Rains MG “WT” or “SW” 4.20 Fronts & 4.20 Rears
Competitors must record the four slick and four rain tires
they wish to use for the entire day (Single or Double Final
race days) on the Pre-Tech sheet to be turned into Tech
BEFORE Qualifying.
SFI 20.1 or other USPKS approved Chest Protectors are
MANDATORY for all drivers under 13 years old
(Section 102.3).
May use either Cadet or Standard chassis. Must run
Cadet Bodywork including the Cadet nose on Cadet
chassis.
See Section 504 and USPKS Website for additional
Engine Rules.
Competitors must record the four slick and four rain tires
they wish to use for the entire day (Single or Double
Final race days) on the Pre-Tech sheet to be turned into
Tech BEFORE Qualifying.
SFI 20.1 or other USPKS approved Chest Protectors are
MANDATORY for all drivers under 13 years old
(Section 102.3).
May use either Kid Kart or Cadet chassis with Briggs or
IAME Bambino engine only, Comer must use Kid Kart.
Must run Cadet Bodywork including the Cadet nose on
Cadet chassis.
See Sections 501 & 502 and Briggs or USPKS Websites
for additional Engine Rules
Does the side pod have to be trimmed to fit? It’s like photos of these karts don’t exist…
That looks like it’s definitely in trim the side pod territory.
1 Like

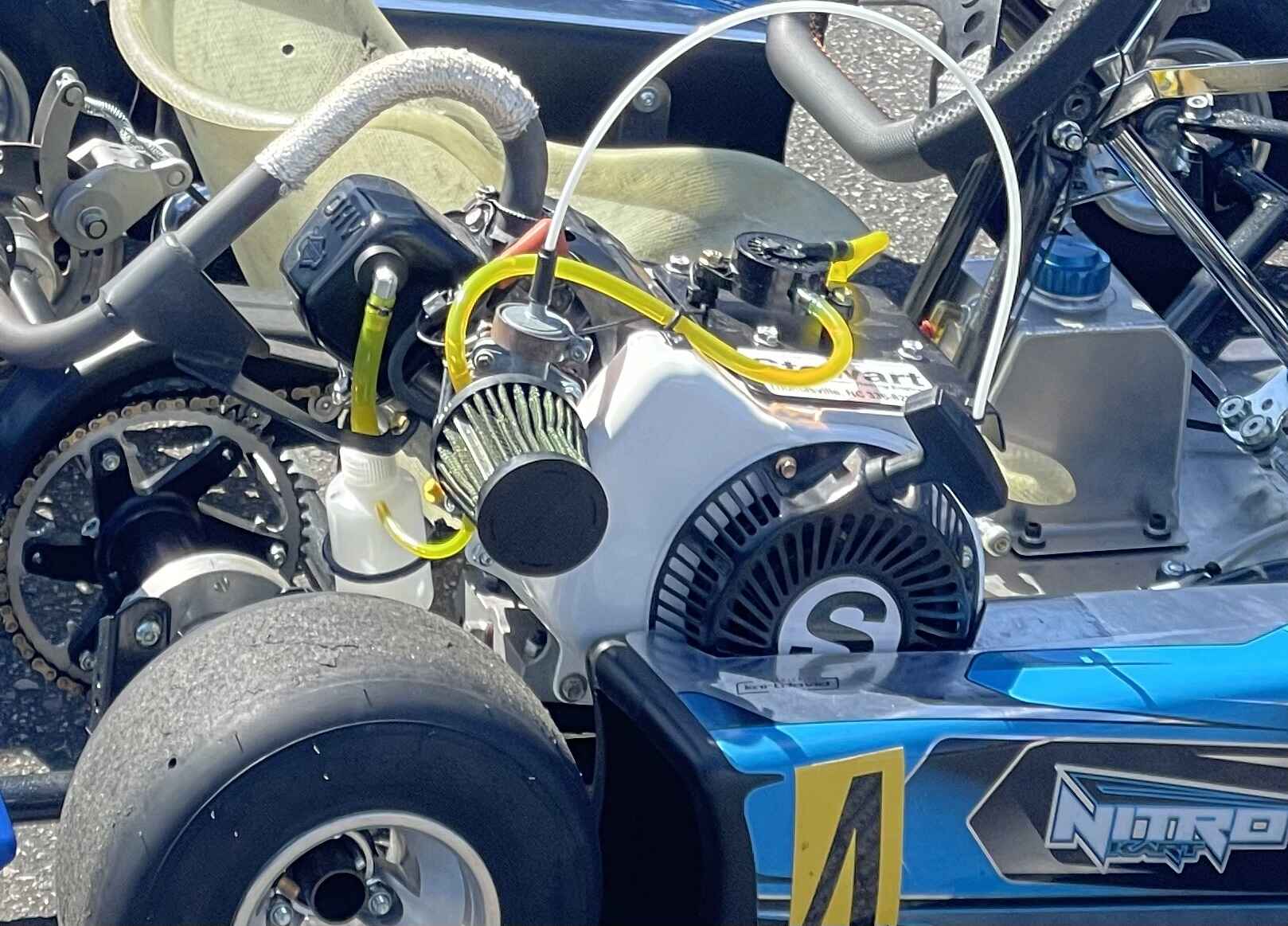

I’m trying to find pictures of how the LO206 fits in the chassis. I’ve had some luck looking at for sale ads.
- Looks like the clutch is flipped on most with the sprocket on the inside.
- Side pods look cut out for engine clearance.
- Fuel tank is the above mailbox style or an aluminum tank from lucky 7 power sports.
Yes to all those points.
1 Like
What angle is the mount you run?
15 degrees to get the carb up above the right rear tire.
1 Like
