Looking for some assistance with setting up a math channel. I am struggling some with getting it done. I am savvy enough at programming that I can get it done with some decent instructions. Unfortunately the printed manual I found online sucks in regards to math channel configuration.
I can build the syntax with no issue, seems to check fine when I run the checker. But when I click OK button it is forcing me to add a step for a CHP that I cannot understand or get past.
Does someone have a good step by step video or set of instructions out there for this?
Can you post a screen shot of the channel and error?
Do you mean CHF (channel function?)?
Click the green question mark icon top left of the math channel window to be taken to the help file that has a lot of info on the meanings, syntax, channels, etc.
My son had the Surface Tablet with the install on it. I will pull it tonight and provide better detail.
Had a couple busy evenings this week, so just getting back on this.

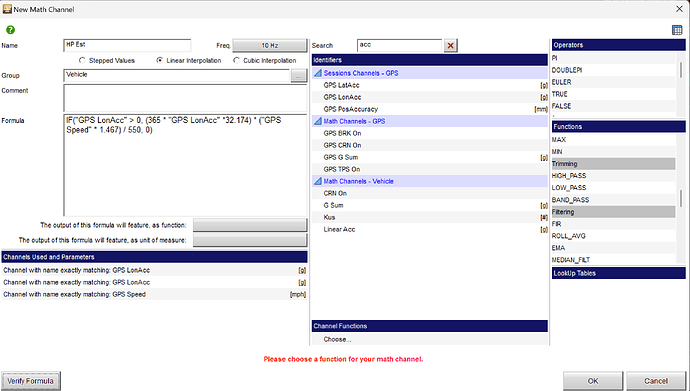

Below is what I have. I intend to play around some more with some math channel stuff, this is just my first foray into it.
Note the red error message….and I am struggling to find decent instructional material on doing anything with this.

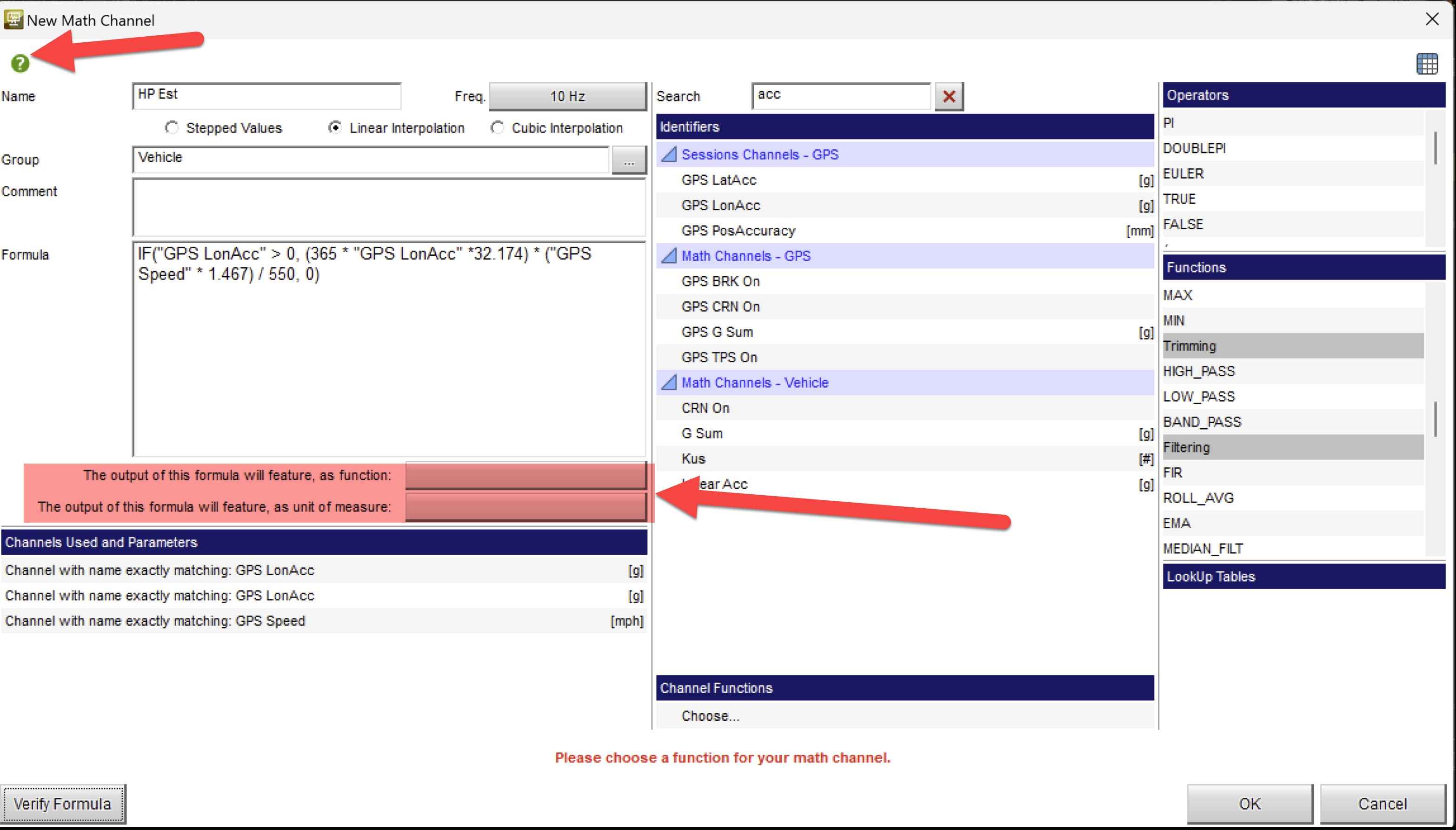

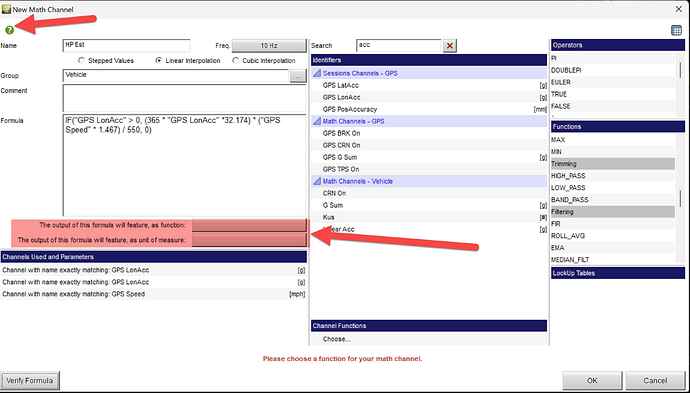

Fill out the highlighted area for the function and units. Also note that if you click the green button top left, you can get to the help files.
1 Like
Thank you. I found the help files, but no solid step by step. Filling out the boxes at the bottom got me what I wanted! First step to playing in depth with some data.
