TM KZ R1 Maintenance Intervals + Before/After Session Prep

, , ,
1

Hi guys! New Shifter here. I was hoping someone with good knowledge on the TM KZ R1 could confirm a few of the findings I’ve put together to keep my engine in top shape for hobby driving and the occasional club race? I will divide my finding to confirmation into 3 sections.

Pre Session + Post Session

Pre session: Check sparkplug (if needed/good), chain (clean), filter (rinse, lube), fuel (mix), lube (chain), tune up (warm-up, rev-out, adjust by setup reference - TM KZ Setup App), bolt check.

Post session: ? - Would appreciate Input Here

Chassis + Engine Maintenance

| Component | Interval | Notes |

| Top-end rebuild | Every 6 hours ( 60 L ) | Piston, rings, small end bearing |
| Bottom-end rebuild | Every 12 hours ( 120L ) | Crankshaft, conrod, main bearings|
| Gearbox oil change | Every 3 hours | Or after every race weekend |
| Reed valve check | Every 6–8 hours | Replace if chipped, frayed, or deformed |
| Clutch inspection | Every 10–12 hours | Check for wear, slipping, or inconsistent engagement |
| Chain maintenance |After every session | Clean, inspect, lube, check tension |
| Chain replacement | Every 2–5 hours | 2–3 hrs racing; 4–5 hrs practice; sooner if stretched or kinked |
| Cooling system check | Every race day | Check coolant level, clean radiator, inspect hoses & water pump |
| Coolant flush | Every 10 hours | Use distilled water + MoCool/Engine Ice; purge air thoroughly |
| Brake bleeding | Every 2–4 hours | Or when pedal is soft; use DOT 4 or 5.1 fluid |
|→ Brake bleed steps|—|Pump pedal → hold → open nipple → close → repeat until no air|
| Fuel hose replacement | Every 10–15 hours | Ethanol degrades rubber; replace filter too; drain after use |

Now the Confusing Part! Jetting my engine so that I can control how much fuel and air makes its way to the engine.

I know there is an entire forum on jetting but if someone could confirm a few things here that would be great!

  1. The goal of jetting is to better my engine performance and protect the engine through optimization by the condition on of the day.

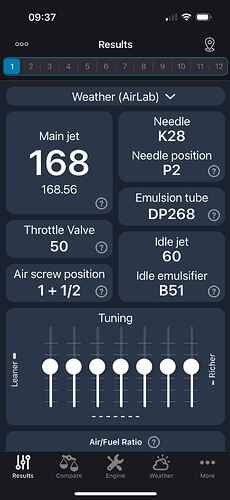

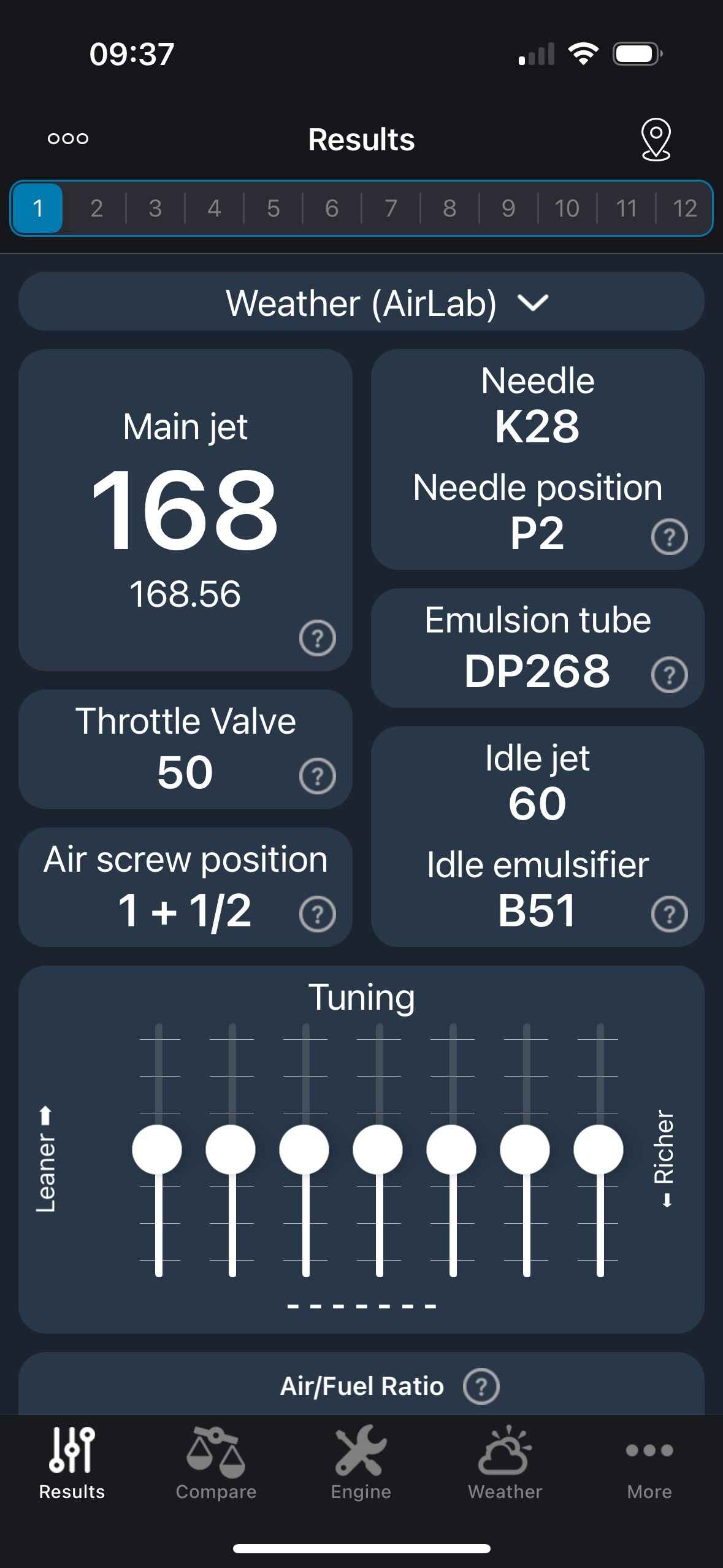

  2. I can do this through the TM KZ Setup APP (My preferred method. Anyone else have experience with this?). It takes my weather data and tells me what Main Jett, Needle Position, Emulsion tube, Idle Jett, and idle emulsifier to use. Done. Attached is an example. Does this sound about right? Again, this is just at the club level for me, but I want to make sure nothing happens to the engine and it’s in top shape

    IMG_5633
    IMG_56331179×2556 112 KB
    - This is what the reccomendation is for 19C with 70% Humidity.

I would really appreciate any detailed responses and maybe your ritual for maintenance/setup?
Thanks Guys

2

I would check reeds on a shorter interval. At the top level we’re checking them every day. If not abusing the engine then I would still check them after each race weekend just to be safe, as once they start to chip and fray they are prone to further breakage.

Main bearings do not need to be changed on the same interval as the rod assembly. Main bearings can typically last a season or two, depending on how often you’re driving.

The 428 chain can also last quite a long time. We put on a new chain before big races, but I replace my practice chain typically only at the start of each season.

Regarding jetting, there is a lot of good info already floating around on the forums. What fuel and oil are you using? This is the first factor which dictates how aggressive you can go with jetting, followed by other tuning tools like ignition advance and squish/ccv. The jetting apps typically lean a bit to the rich side, which is just fine. These engines will run without issue even when quite rich. For the sake of longevity, you’re better off staying a bit rich, as opposed to going lean trying to chase an extra 0.5mph.

The header and exhaust pipe are the most dependable places to “read” the jetting, aiming for a milk chocolate coloration on those. Darker and wetter is too rich. Anything khaki colored or lighter is venturing into too lean. We also utilize an EGT sensor to achieve a target number that has been identified for best performance. Talk to your engine builder about this, as it will also depend on your fuel, as well as your track (long vs. short), and how the engine is set up.

3

Hi!

This really helps man thanks so much.

Regarding fuel we use : Aspen +
Gear oil: Motul Gear 300 75W-90
Fuel Oil: Motul Kart Grand Prix 2T

To be honest I am not in the phase where I want to get maximum performance. The first priority is to run with no issues and if for the sake of longevity I am a bit on the richer side. Sounds good to me :slightly_smiling_face:. I’ll dial back on replacing the chain so often and try to check the reed valve maybe every-time I change the gear oil?

4

In terms of engine building, I change piston every 3 hrs and do 4 to 5 pistons before a full bottom end rebuild.

5

That gear oil is super heavy. That’s like truck differential oil. Just run good ATF and change regularly, every 2-4 sessions.

6

Thank you! Really appreciate it

7

Why so often? Do you find that there is a drop off in performance after 3 hours?

8

Ring gap is usually smoked if it was ran with a raceday type mixture. You can go longer (seen 10+ hours) but power drops a tick according to those guys who were doing it.

9

Just what our engine builder recommends, they can run longer, most I’ve ran was maybe 4-5hrs, I was running rich at that stage just testing so I can’t comment on pace or if it lost much.

10

I run pistons for 6 hrs, bottom 18 hrs if I’m just practicing. For racing, local level I found myself doing top ends naturally every 3/4 hours (new piston for the race, few training sessions in between events, I end up at around 3/4 hours on Saturday of the next race, just in time for a top end so I can run the event on a new piston). But it’s not a requirement. Bottom end always stays the same.

As for reeds, I agree on the above, reeds check them every time until you learn the wear pattern, if too high change few parameters until it’s under control (they should last at least the same as the piston). Some times even that is not enough, few aggressive downshifts can create extra wear, so keep an eye on them regardless

11

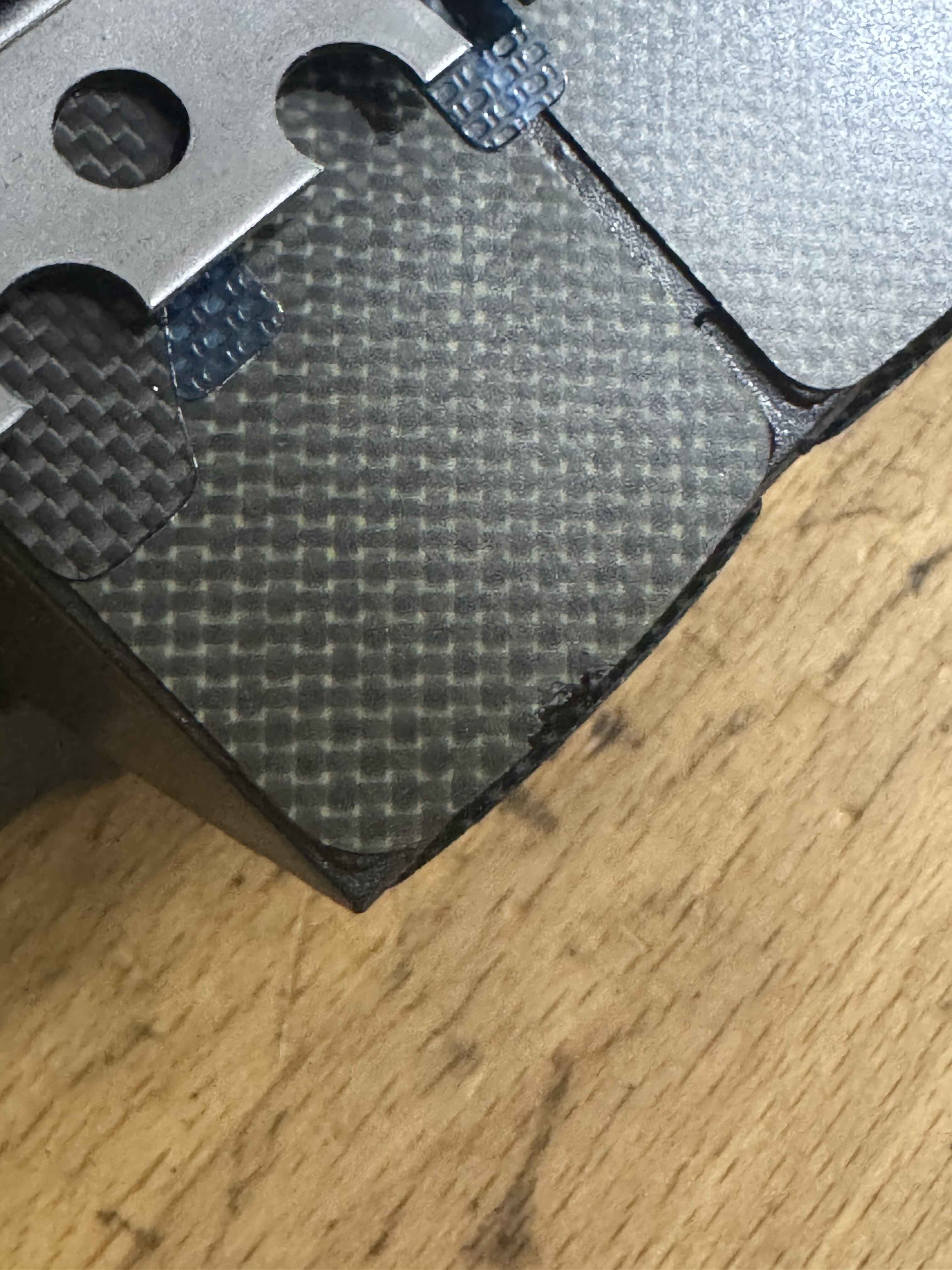

Glad I’m checking after every session. Maybe 3 hours on a new set of reeds. Kinda lame they are already chipped. I’ve been so gentle on down shifts.

Do I replace the whole reed set again? Plastic shims, carbon backers, and main reeds. Felt overkill replacing everything last time.

IMG_2633
IMG_26333024×4032 479 KB

12

Do they have to be carbon fibre?

13

There’s only carbon fibre in KZ and OK classes as far as I know

14

Too soon?

IMG_4473
IMG_4473392×698 63.2 KB

3 Likes
15

Just replace the damaged reed. At a glance that looks like an aftermarket reed, which in some cases won’t hold up as well as the OEM reed. Also, minor detail but rearrange the set so the blue stiffener is outside of the carbon half moon. Typically the bottom side will have two half moons plus a blue one. Standard reed is 0.33mm, and I would avoid going thinner than that.

2 Likes
16

Weird that should be OEM parts and I just matched the stack up of parts from when I bought it. Good to know I’ll swap it back.

I only had the single carbon backer on the bottom. Weird to be asymmetric to me but I’ll make it match OEM.

17

My experience with TM, LKE and now Iame is exactly that. OEM reeds perform the best and last the longest. I’m not saying there is no better alternative, but I still have to find it

18

Maybe someone grabbed the wrong parts when shipping to me, but these should have been OEM TM reeds. Ordered a new set last night.

19

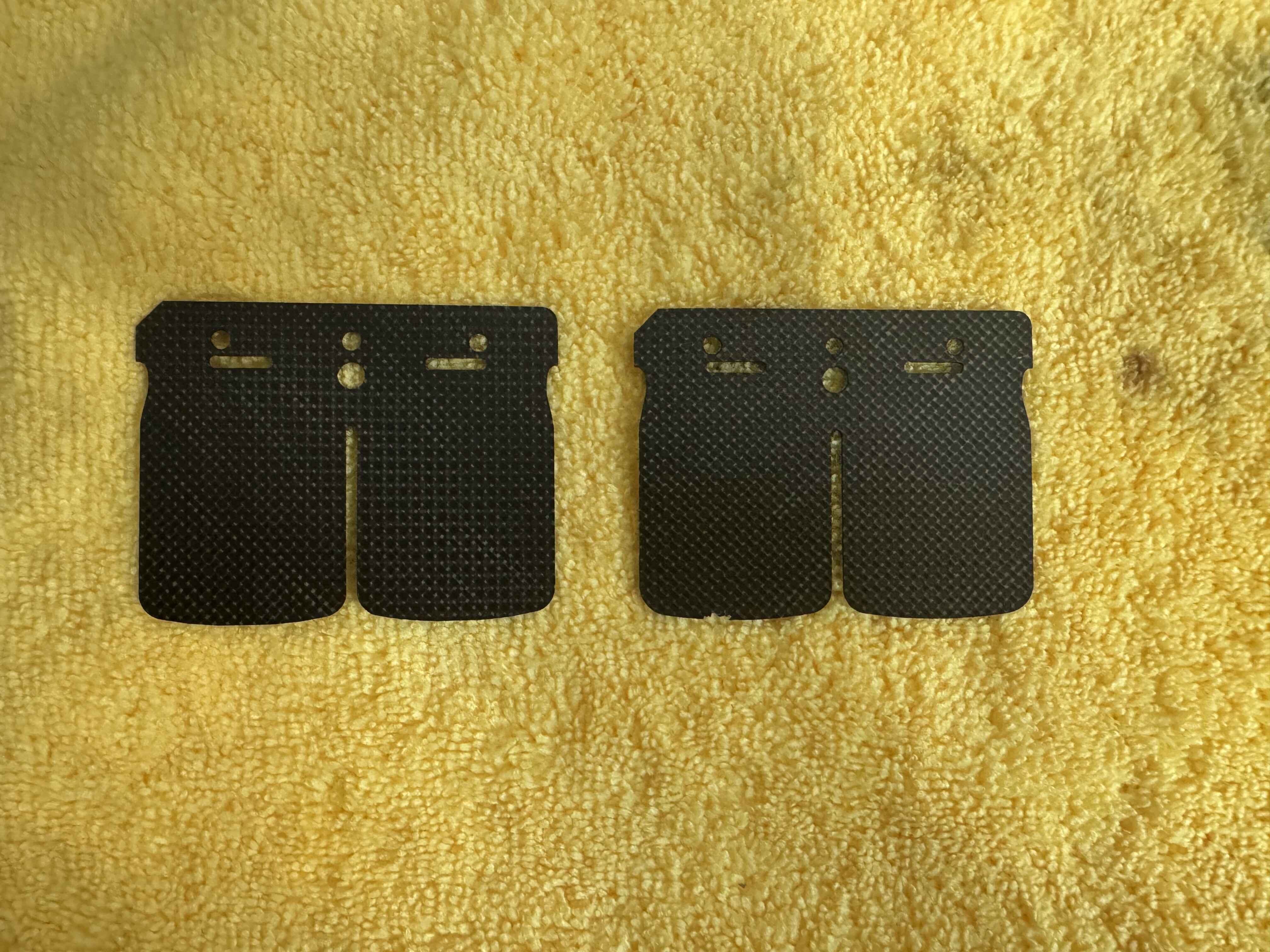

Can any KZ nerds identify these reeds then?

IMG_2640
IMG_26404032×3024 687 KB

20

They look like mondo kart reeds.

I continue to believe the leaded fuel you guys use in the US deteriorate reeds at a rate that far exceeds what we see in Europe.

1 Like
